A versatile work horse
3:rd generation
Clara AC 32 can be applied in many different fixture types
Many power versions
Available in Ra<80 and <90
Easy and safe mounting with connectors
Long life time, 50 000 h (L80B10)
No driver
230VAC – No need for a driver
You are able to connect the LED-module directly to 230VAC mains and won’t need a bulky driver.
This allows freedom to design slim fixtures without making place or need extra cables for a driver.
And without an extra component there is less risk of failure.

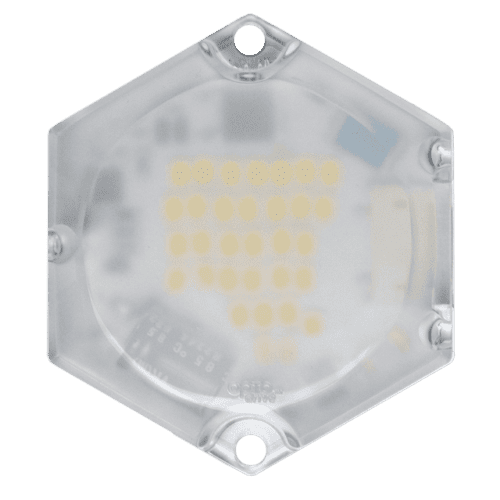

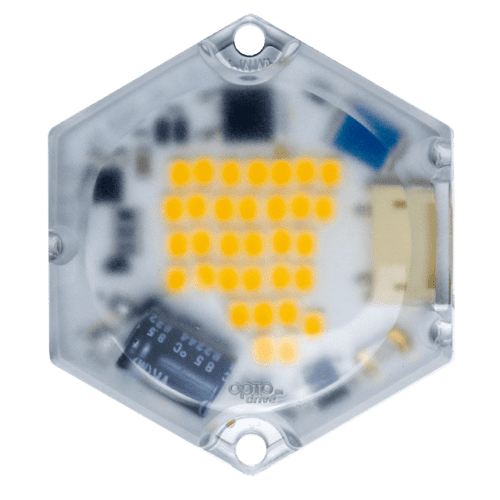

Coated
Silicone conformal coating – for improved moist resistance
The LED-engine has a conformal silicone coating over the components to make it even more suited for outdoor lights.
Consistant form factor
Hexagonal shape
The hexagonal modules are designed to fit in round, square or hexagonal fittings.
The hexagonal designs are available in three different versions – Felicia, Clara and Svea.
The form factor is consistent over time, and is easy replaceable since the mounting holes are the same year after year.
The Clara family
For bedlights
| Power | 4W | 8W |
|---|---|
| Flux | 350lm | 600lm |
| CRI | Ra:97 (R9:98) |
| Optics | 10° | 25° | 40° |
Perfekt till down- och spotlights
| Power | 5W | 10W |
|---|---|
| Flux | 550lm | 950lm |
| CRI | Ra>80 (Ra>90) |
| Optics | 25° | 40° | 60° |
For examination light
| Power | 12W |
|---|---|
| Flux | 900lm |
| CRI | Ra:97 |
| Optics | 9° lens |
For use with external driver
| Power | 12W |
|---|---|
| Flux | TBA |
| CRI | Ra>90 |
| Optics | 25° | 40° |
För dekorativ belysning och downlights
| Power | 5W | 10W |
|---|---|
| Flux | 500lm | 950lm |
| CRI | Ra>80 | Ra>90 |
| Optics | 50° lens |
Ny förbättrad version!
För pollare och utomhusbelysning
| Power | 4W | 6W | 10W |
|---|---|
| CCT | 2200K | 2700K | 3000K | 4000K |
| CRI | Ra>80 | Ra>90 |

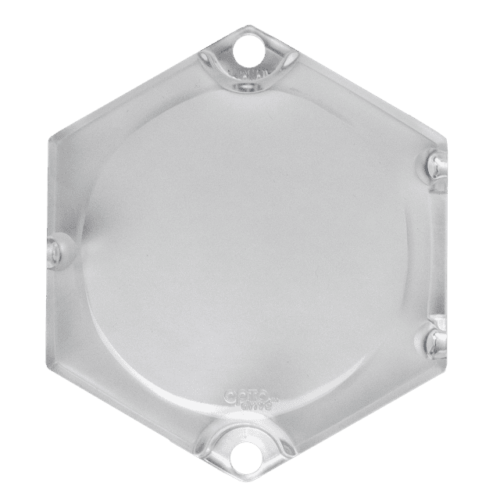

| Optics | 100° IP cover difused | 100° IP65 cover |
| Datasheet | Datasheet_CLARA_AC_IP65_FF_Fully_Dimmable_v3.2.pdf |
