Lilly80 AC IoT

Power	4W \| 6W \| 10W
Flux	430lm \| 630lm \| 830lm
CRI	Ra>80 (Ra>90)
Optics	130° Cover \| 130° Cover diffused

Power	4W \| 6W \| 10W
CCT	2200K \| 2700K \| 3000K \| 4000K
CRI	Ra>80 \| Ra>90
Optics	100° IP cover difused \| 100° IP65 cover
Datasheet	Datasheet_CLARA_AC_IP65_FF_Fully_Dimmable_v3.2.pdf

Power	20W
Flux	2400lm
CRI	Ra>90
Flicker	<10%

Power	20W
Flux	2000lm
CRI	Ra>90
Flicker	<10%

Power	20W
Flux	2300lm
CRI	Ra>90
Flicker	<10%

Power	9W \| 16W
Flux	950lm \| 1700lm
CRI	Ra>90
Flicker	<10%

Power	16W \| 30W
Flux	1700lm \| 3200lm
CRI	Ra>90
Flicker	<10%

Power	4W \| 8W
Flux	350lm \| 600lm
CRI	Ra:97 (R9:98)
Optics	10° \| 25° \| 40°

Power	12W
Flux	900lm
CRI	Ra:97
Optics	9° lens

Power	14W (30W)
Flux	1170lm (2340lm)
CRI	Ra:96 (R9:96)
Optics	9°

Power	14W (30W)
Flux	1170lm (2340lm)
CRI	Ra:96 (R9:96)
Optics	9°

Power	10W \| 15W
Flux	1000lm \| 1400lm
CRI	Ra:96 (R9:98)
Optics	8°

Power	10W \| 15W
Flux	1000lm \| 1400lm
CRI	Ra:96 (R9:98)
Optics	8°

Power	17W
Flux	1400lm
CRI	Ra:96 (R9:98)
Optics	9°

Power	17W
Flux	1400lm
CRI	Ra:96 (R9:98)
Optics	9°

Power	465lm (700mA)
Flux	278lm ( 350mA)
CRI	Ra>90
Optics	50° lens

Power	1W \| 4W
Flux	90lm \| 170lm
CRI	Ra>90
Optics	30° \| 130° Cover

Power	1W \| 4W
Flux	90lm \| 170lm
CRI	Ra>90
Optics	30° \| 130° Cover

Power	465lm (700mA)
Flux	278lm ( 350mA)
CRI	Ra>90
Optics	50° lens

Power	20W
Flux	2000lm
CRI	Ra>90
Flicker	<10%

Power	465lm (700mA)
Flux	278lm ( 350mA)
CRI	Ra>90
Optics	50° lens

Power	20W
Flux	2000lm
CRI	Ra>90
Flicker	<10%

Power	4W \| 6W \| 10W
Flux	430lm \| 630lm \| 830lm
CRI	Ra>80 (Ra>90)
Optics	130° Cover \| 130° Cover diffused

Power	20W
Flux	2300lm
CRI	Ra>90
Flicker	<10%

Power	10W \| 20W
Flux	1170lm \| 2280lm
CRI	\| Ra>90
CCT	2700K \| 3000K \| 4000K

Kraft

1-10W, 10-20W

Flux

1000 – 2000 lm, 500 – 1000 lm

CCT

2000-3000K, 3000-4000K

Driver

Form

Rund

Kategorisering

Downlight, Pendent, Plafond

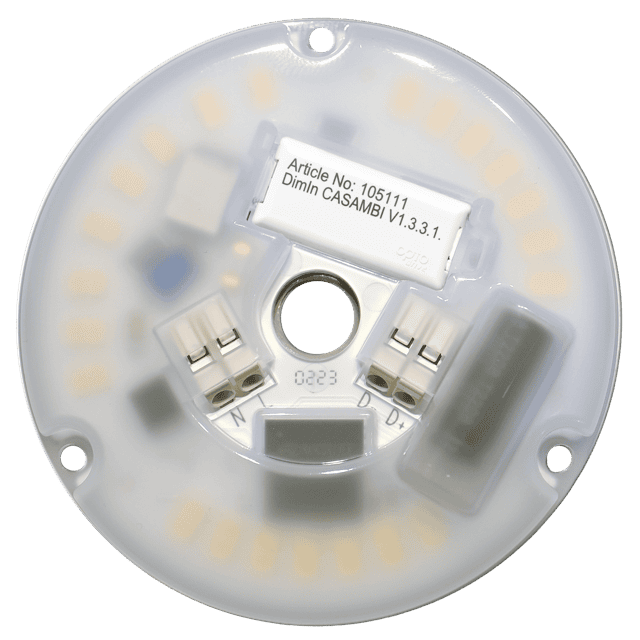

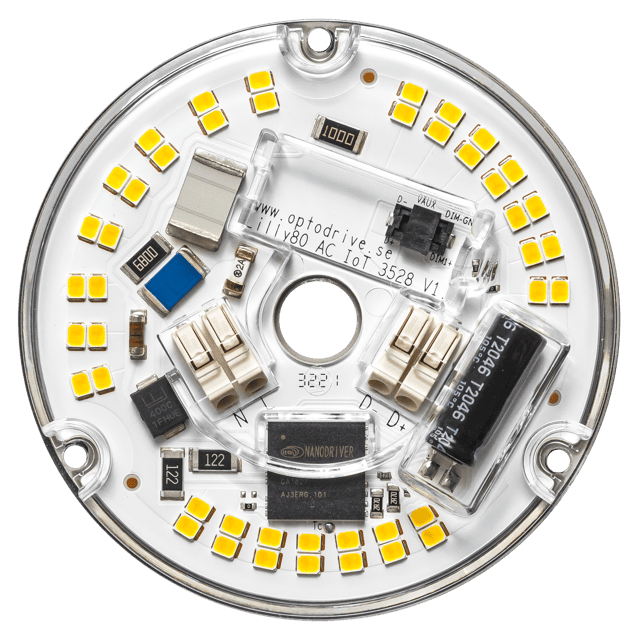

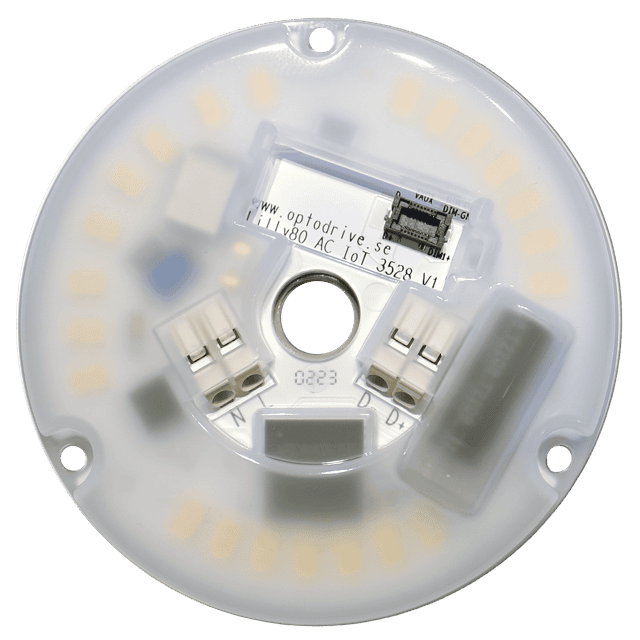

OptoDrive® Lilly AC IOT for smaller plafond and indirect light applications

230VAC LED module for pendant luminaires and opaque glass luminaires (bulkheads) with IoT interface as standard, fully integrated. Fully prepared to handle the new protocols for connection to DALI and wireless such as Casambi or other solution.
