DimLight CCT

Medical ID accessory

Used together with Svea ID CCT and Flexswitch CCT.

Driver

ID
Form

Linjär
Kategorisering

Medical
Add to wishlist
Overview

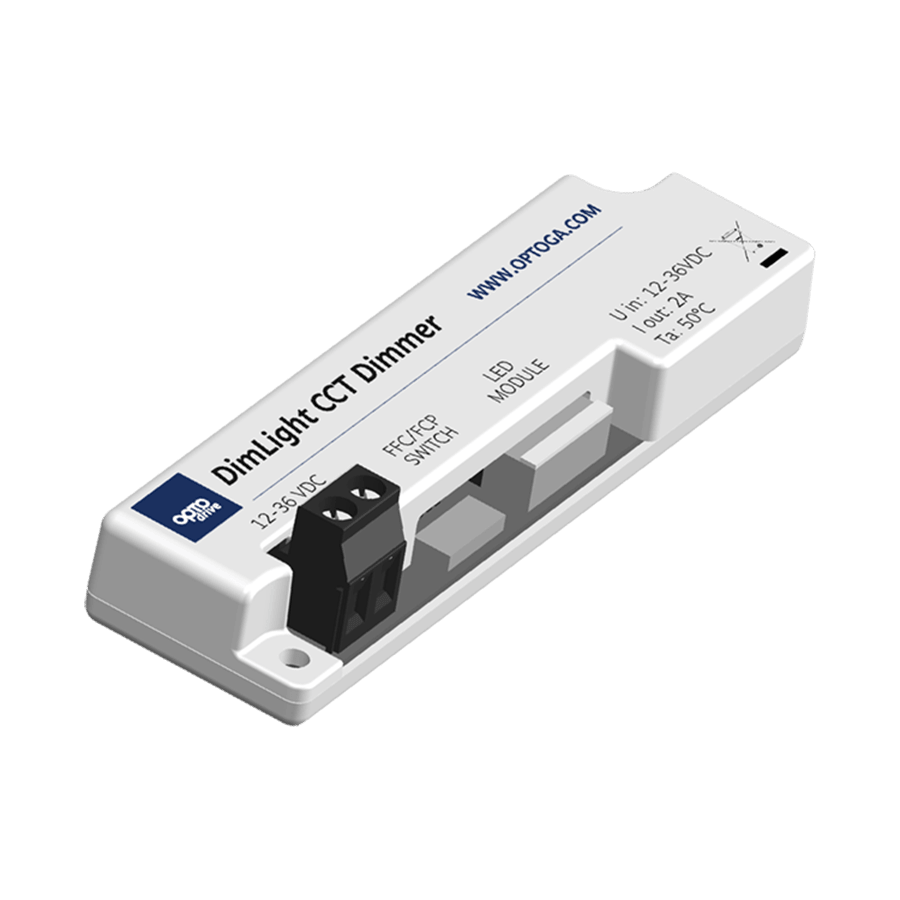

DimLight CCT

Used together with SVEA ID CCT and FlexSwitch CCT. For changeable CCT applications in medical use.

  1. Connector “12-36 VDC” from the left is connected to power supply.
  2. Connector “FFC/FCP SWITCH” is connected to a membrane switch.
  3. Connector “LED module” is connected to SVEA ID.

Accessories to DimLight CCT

Flexswitch (Membrane)

Mounting of DimLight CCT

Mounting of a single Dimlight CCT - Svea ID CCT setup.
Mounting of DimLight CCT and multiple Svea ID CCT.

Medical LED-engines

SVEA ID : CCT-med

Svea_ID_12-LED-web-1

SVEA ID : 12med

Svea_ID_12-LED-web

SVEA ID : 7med

Svea_ID_7-LED-web-1

CLARA ID : 6med

Web-CLARA-ID6-1
